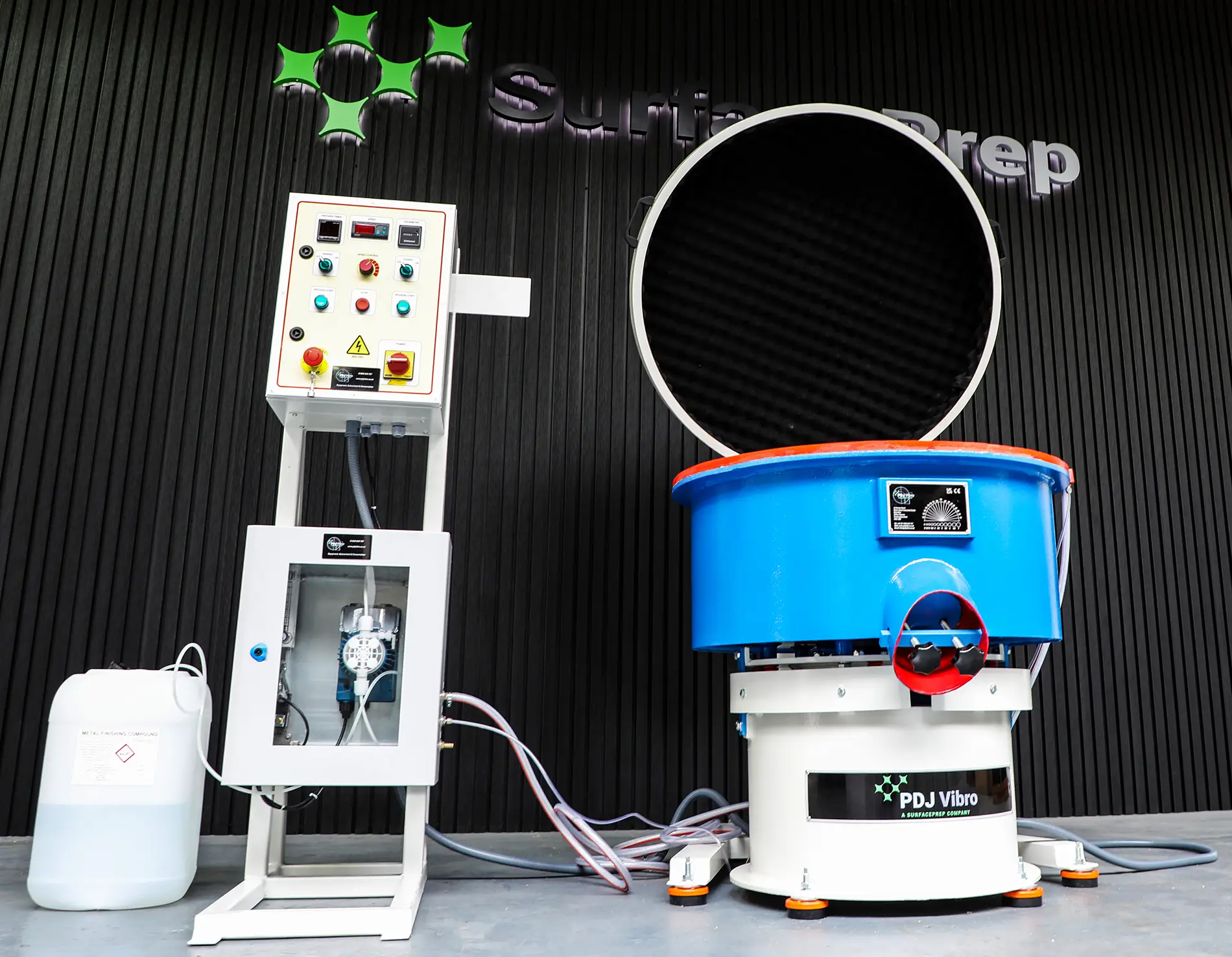

EVP 110 – Compact, Heavy-Duty Vibratory Bowl Finishing Machine
The EVP 110 is a high-performance vibratory bowl finisher designed for consistent results on small to mid-sized batches. Built to last and compact enough to fit into tight spaces, it’s a solid choice for engineering firms and subcontractors alike.
Key Features
- 110 litre working capacity
Ideal for small to medium component volumes - versatile enough for most finishing applications. - Compact but powerful
Outer diameter: 890mm Height: 870mm Small footprint, but industrial-grade performance. - Heavy-duty construction
Fabricated from thick steel, heat-treated and stress-relieved to prevent cracking under vibration. - Durable polyurethane lining
Hot-poured and fully bonded for maximum wear, chemical and media resistance - built for long-term use. - Efficient 1500 RPM vibratory motor
Flange-mounted for a smooth toroidal (wave) motion – ideal for:- Deburring
- Edge breaking
- Polishing
- Degreasing
- Fine cleaning
- Superfinishing
- Optional variable speed control
Fine-tune the process speed for different jobs. Available with single-phase option - perfect for workshops without 3-phase power. - Additional options available
- Process timer
- Chemical dosing system
- Water flow control
- Twin gas-strut acoustic cover (for quieter, safer operation)
Model Numer: EVP-110
Gross Volume: 110 Litres
Weight: 260 kg
Width x length x height: 890mm x 860mm x 870mm
Power: 1.1 kW
Voltage/Frequency: 400/50
Download the Vibratory Bowl Datasheets
A Reliable All-Rounder
From basic subcontract finishing to high-precision engineering, the EVP 110 is built for consistent results, minimal downtime, and easy operation. Contact PDJ Vibro today on 01908 648757 to speak to an expert.
